Ignitor operation

  • ImBack218
  • ImBack218's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
More
8 years 9 months ago #3872 by ImBack218
Ignitor operation was created by ImBack218
Hello,

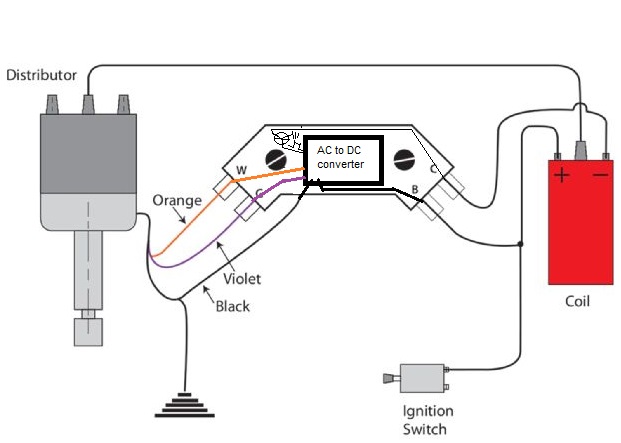

I am trying to understand the operation of an ignitor design that used to be used on GM systems, and I have attempted to draw the internals of the ignitor. Can anyone verify the edits I have made on this image?
Attachments:

Please Log in or Create an account to join the conversation.

  • Noah
  • Noah's Avatar
  • Offline
  • Moderator
  • Moderator
  • Give code definitions with numbers!
More
8 years 9 months ago #3881 by Noah
Replied by Noah on topic Ignitor operation
Looks good to me. Enough at least for troubleshooting.
"Ground cannot be checked with a 10mm socket"

Please Log in or Create an account to join the conversation.

  • ScannerDanner
  • ScannerDanner's Avatar
  • Offline
  • Administrator
  • Administrator
  • Religion says do, Jesus says done!
More
8 years 9 months ago #3894 by ScannerDanner
Replied by ScannerDanner on topic Ignitor operation
This is the video for you brother. I actually start this lecture using the GM 4 pin module and then expand to electronic spark timing from there.
Are you a premium subscriber?
Don't be a parts changer!
