2002 volvo v70

needing a wiring diagram for the fuel pump. if anyone has one its appreciated

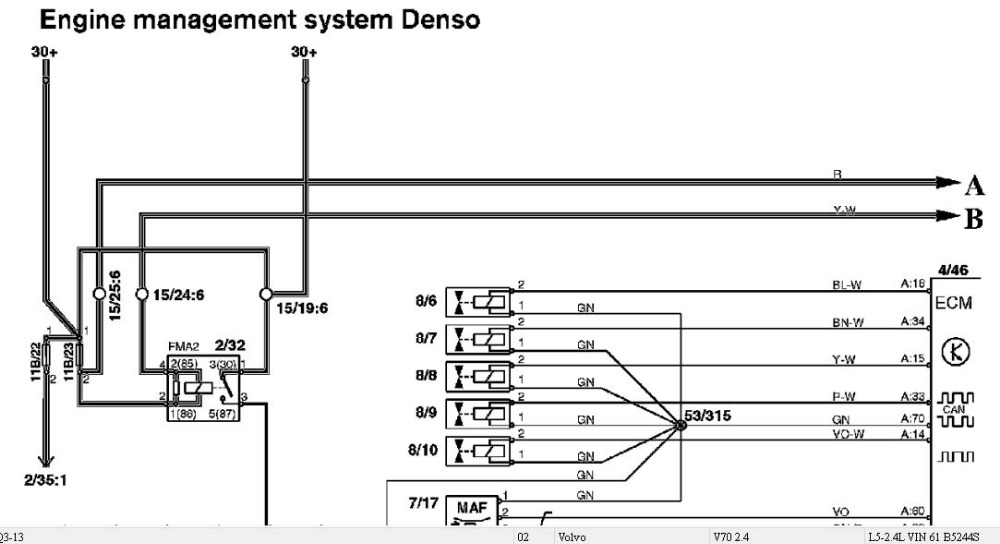

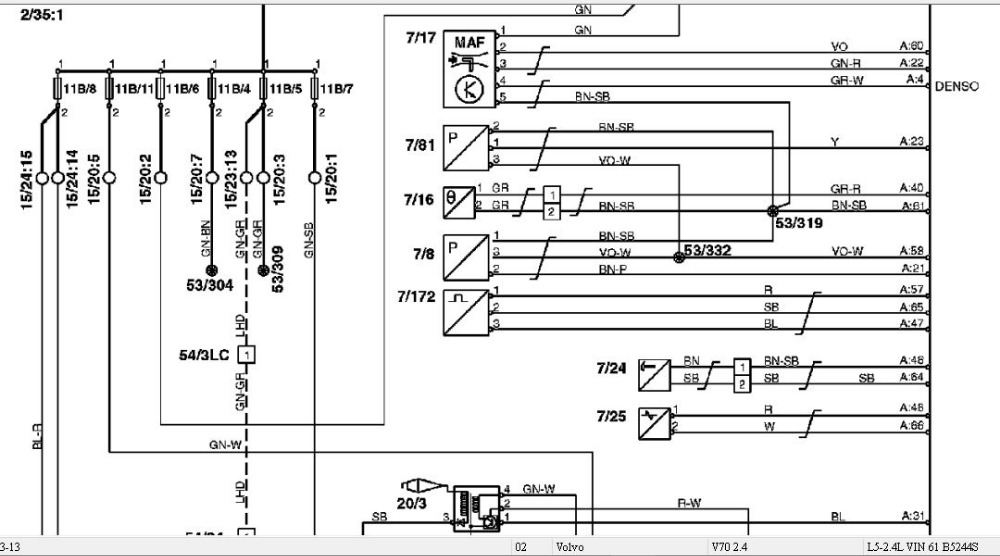

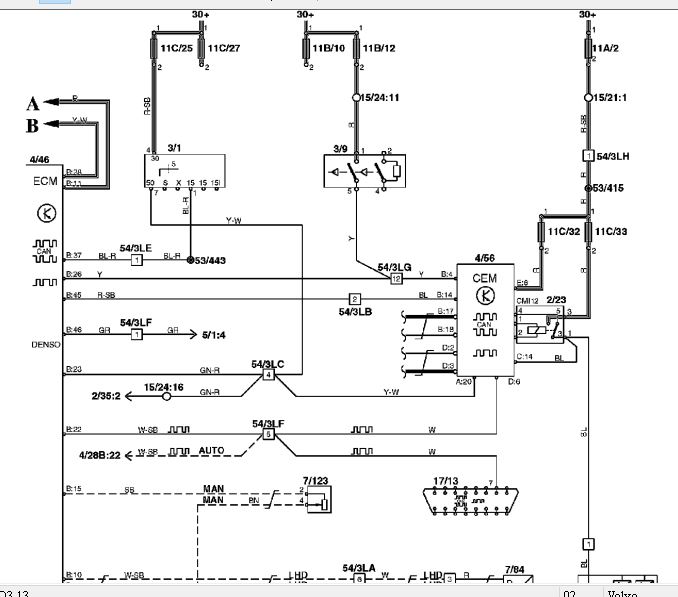

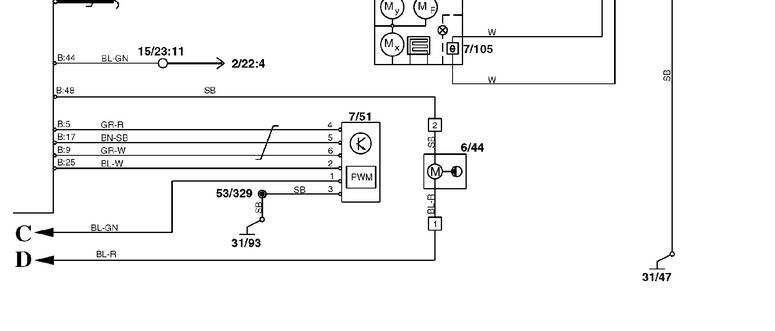

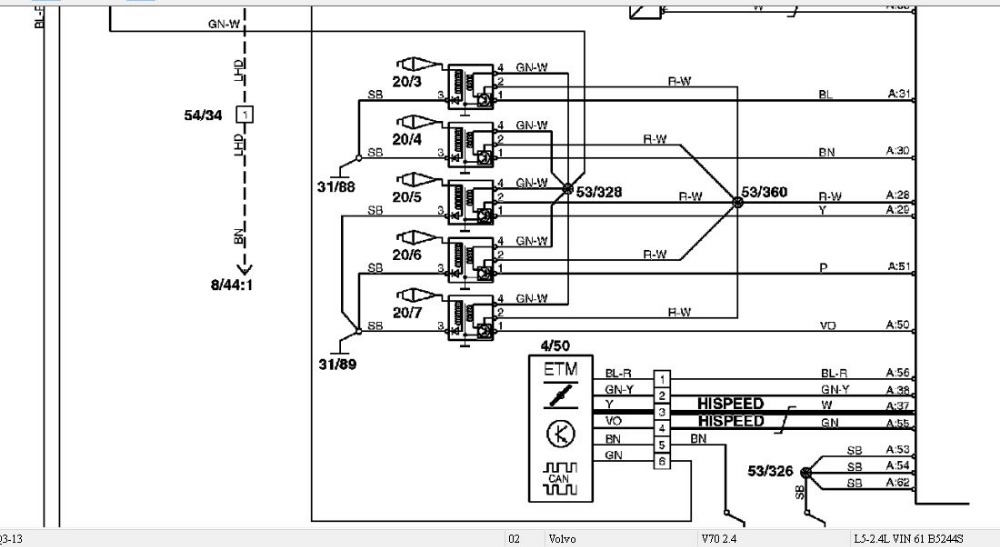

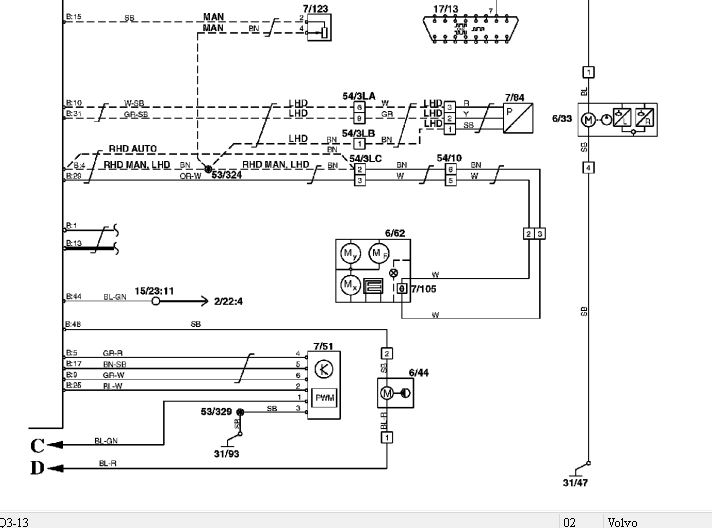

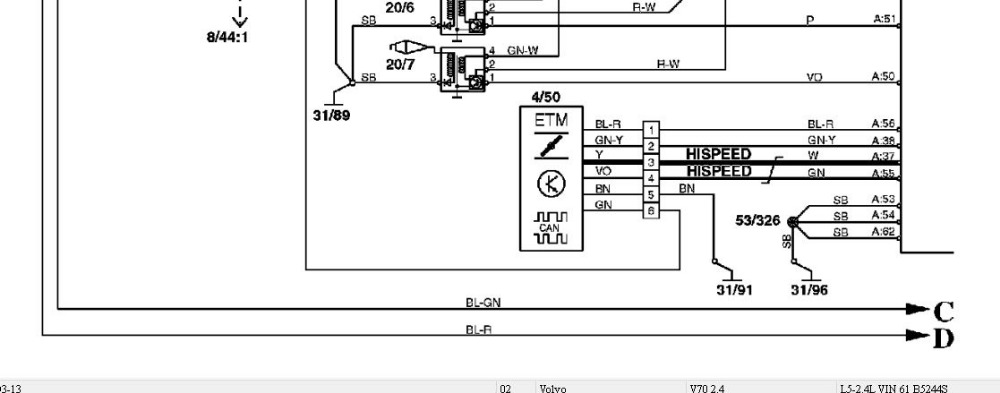

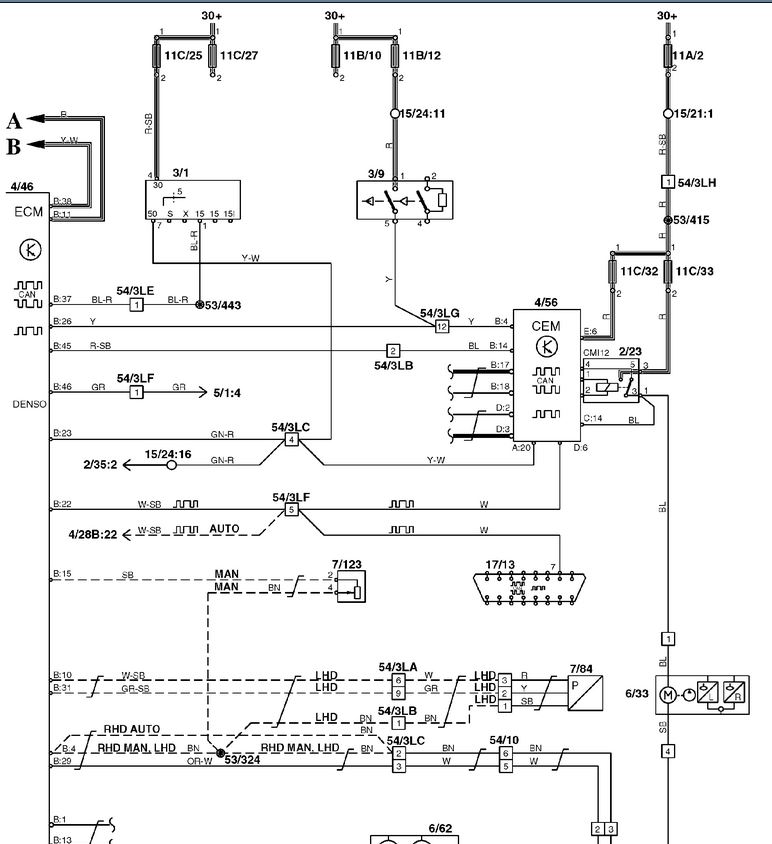

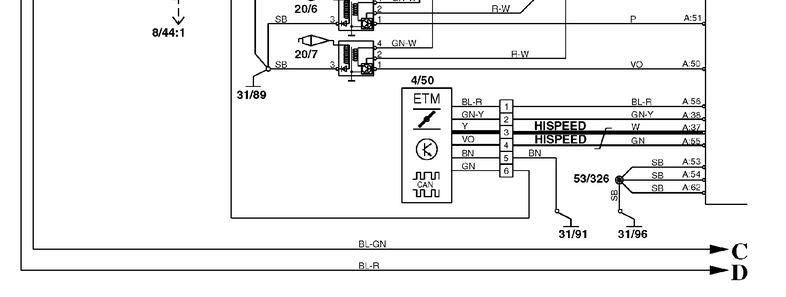

Hope this helps. They are snippets, you will have clip them back together, Its your engine management diagrams and Fuel Pump.

Thanks pole71, for a complete picture, for the life of me, I could not figure out how to get one big diagram with Alldata lol.

Weycraze wrote: I could not figure out how to get one big diagram with Alldata lol.

I use Windows Snipping Tool. Zoom in so that the Screen is filled by 1/2 of the diagram. Then snip two halves. When you insert them in the post, it looks like 1, complete, diagram.

Thanks, I shall try that, so it knows to put the two Jpegs together?
And, what source was the nice relay diagram, Mitchell?

ISTR Paul did a multi-part case study on a fuel module issue on one of these --- I have searched but can't find the series. I might be wrong but iIt was a major pita not the fuel pump or fuel pump module fault was due to water ingress entering a module under the windscreen.

Weycraze wrote: so it knows to put the two Jpegs together?

When you upload the .jpg/.png file, the insert option is presented. It will insert the jpg/png wherever the Cursor is positioned in the message.

After you insert the first jpg, the cursor is flashing after the file tag. Press enter to go to the next line, directly below and insert the second jpg.

Hit enter twice, before inserting the first part of the second diagram, to separate diagrams.

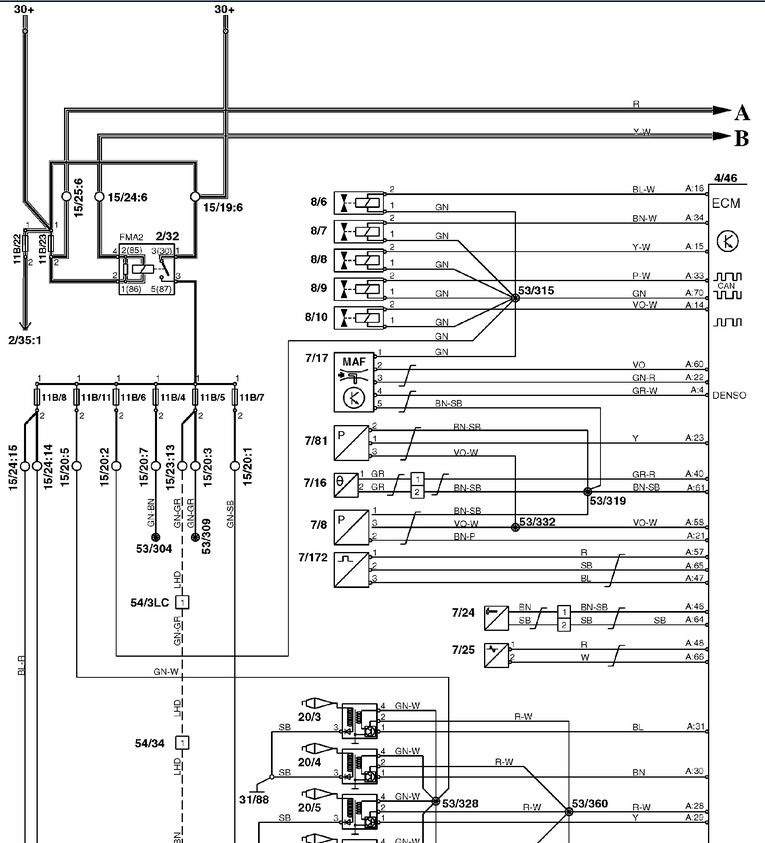

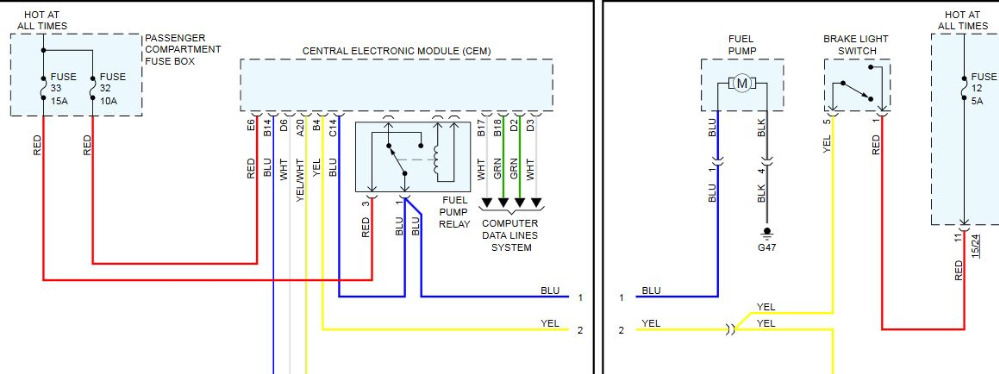

And, what source was the nice relay diagram, Mitchell?

Yes, it is a Mitchell diagram. AllData has Mitchell diagrams, now, too!

Edit: That is, actually, from AllData. Notice that it is two different pages, side-by-side. AllData will let you scroll them like that. Mitchell will not.
