1996 FORD F150 4.9 L6

Am in search of the complete wiring diagram of the underhood fusebox including the wiring color and pin placement the fusebox is numbered 1 to 69 far as i can see ////

please help thanks

i have a serious dilema am working on a 1996 FORD F150 4.9 L6 need a picture of the bottom of the underhood fuse box showing pin placement and wire coloring about half the wires in my fuseblock literally fell out the bottom of the fuseblock can anyone please help me and thanks i was thinking either picture or video from a wrecking yard vehicle for the picture as i only have this 1 vehicle and closest wrecking yard is over 60 miles from me again thanks and God Bless Everyone

Does anyone own a 1996 ford f 150 with a 4.9 300 6 cylinder if so i have a serious dilema am DESPARATELY in need a picture of the bottom of the underhood fuse box showing pin placement and wire coloring about half the wires in my fuseblock literally fell out the bottom of the fuseblock fuses and wires hanging everywhere can anyone please help me and thanks i was thinking either picture or video from a wrecking yard vehicle for the picture as i only have this 1 vehicle and closest wrecking yard is over 60 miles from me again thanks have checked availability in most southern states nothing available// PLEASE Help thanks Gerald

I'll keep my eye out for this generation of F-150 coming through the shop. We don't see a lot of these in our area, but they're still out there. Ford wasn't great about providing pin-out diagrams for vehicles of this year, but I'm happy to check Mitchell on Monday.

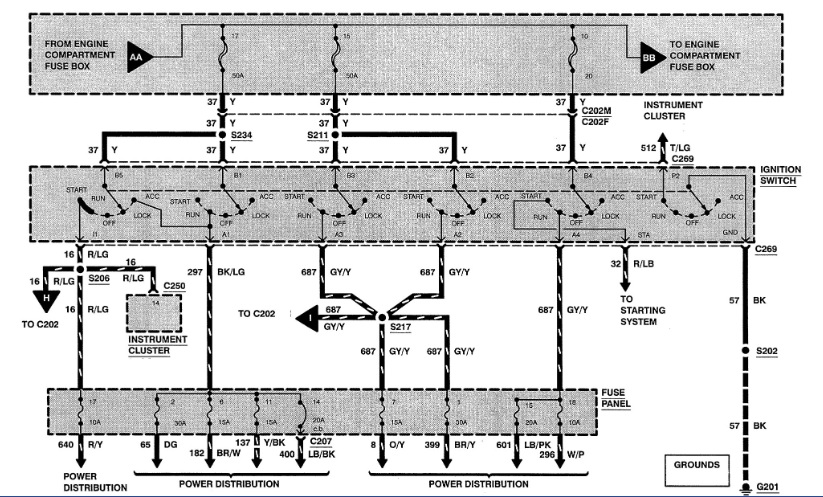

BBB Industries has lots of power distribution diagrams, but none will be very useful since the diagrams themselves don't have individual pins numbers.



Three yellow wires coming out of the fuse box, and zero distinction between them. :lol:
