Flawed Diagram

  • Chad
  • Chad's Avatar Topic Author
  • Offline
  • Moderator
  • Moderator
  • I am not a parts changer.
More
3 years 6 months ago #43127 by Chad
Flawed Diagram was created by Chad

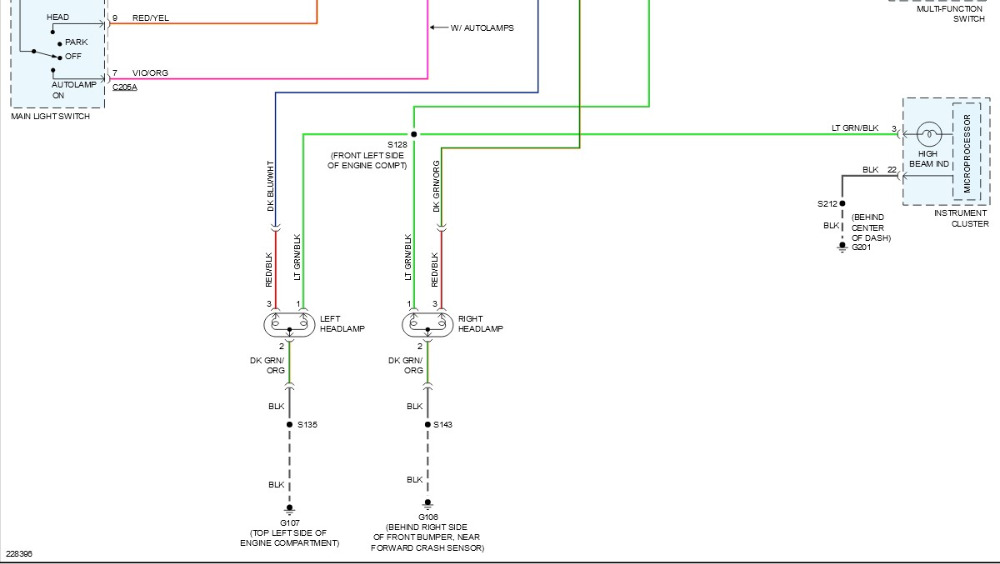

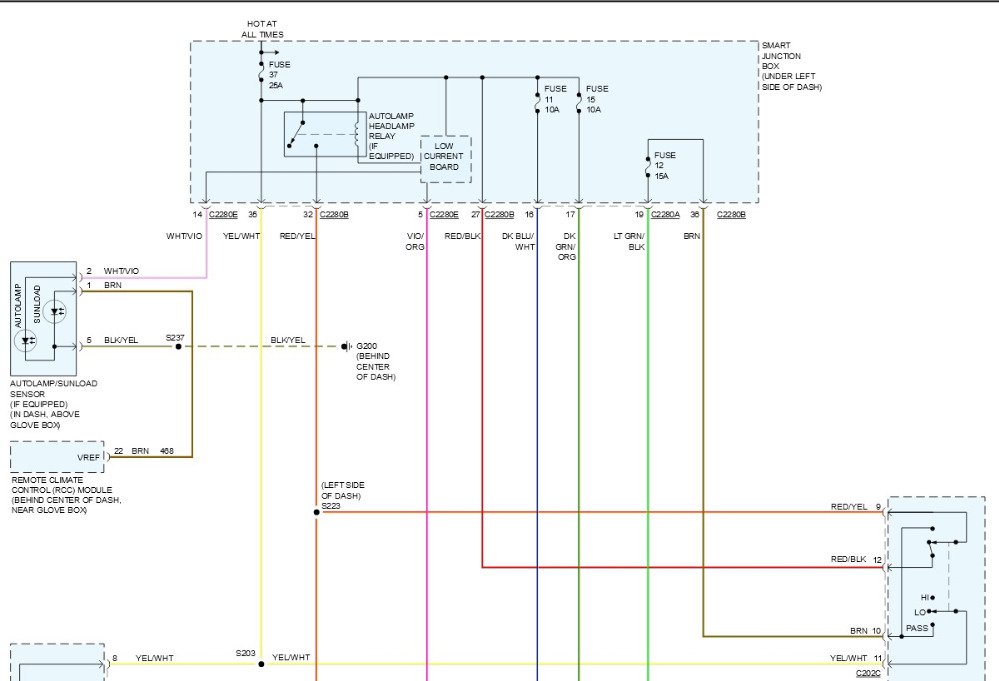

This wiring diagram has a flaw. :silly: If you find it, leave a comment. But, please, don't state what the flaw is, yet. B)



"Knowledge is a weapon. Arm yourself, well, before going to do battle."
"Understanding a question is half an answer."

I have learned more by being wrong, than I have by being right. :-)
