ignition waveforms
7 years 6 months ago - 7 years 6 months ago #3018
by Eagletech

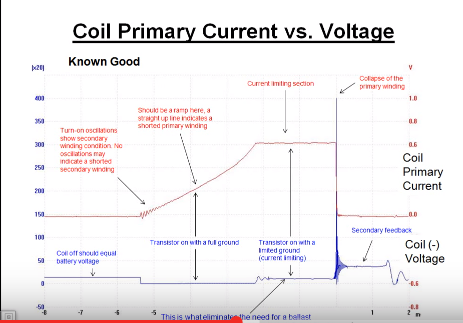

I just think that this is interesting: I read an article about ignition waveform and there is something that may be useful for troubleshooting and is the fact that in order for the energy of the coil to jump the spark plug gap, the energy build a plasma that is use as a bridge and is something that you can actually see on the waveform as the oscillation right after the big spike (collapse of the magnetic field ). We can identify a gap problem or even an open wire because the energy of the coil will need higher then normal voltage in order to build the plasma (bridge)
Please comment thanks
ignition waveforms was created by Eagletech
I just think that this is interesting: I read an article about ignition waveform and there is something that may be useful for troubleshooting and is the fact that in order for the energy of the coil to jump the spark plug gap, the energy build a plasma that is use as a bridge and is something that you can actually see on the waveform as the oscillation right after the big spike (collapse of the magnetic field ). We can identify a gap problem or even an open wire because the energy of the coil will need higher then normal voltage in order to build the plasma (bridge)
Please comment thanks
Last edit: 7 years 6 months ago by Eagletech.
Please Log in or Create an account to join the conversation.
7 years 6 months ago #3023
by Dylan
Replied by Dylan on topic ignition waveforms
Have the link to the article or was it on paper?
Also check out latest video on SD Premium if you haven't. ScannerDanner explains the basics in his classroom with this case study:
Also check out latest video on SD Premium if you haven't. ScannerDanner explains the basics in his classroom with this case study:
Please Log in or Create an account to join the conversation.
7 years 6 months ago - 7 years 6 months ago #3072
by Eagletech
Replied by Eagletech on topic ignition waveforms
this is the PDF
