12 Jan 2020 09:30 #36545 by Tyler
Pressure Waveform Overlays was created by Tyler
Just found this little gem in the Microsoft Store. :cheer:

www.microsoft.com/en-us/p/pressure-wavef...verlays/9ngwmcx2rmth

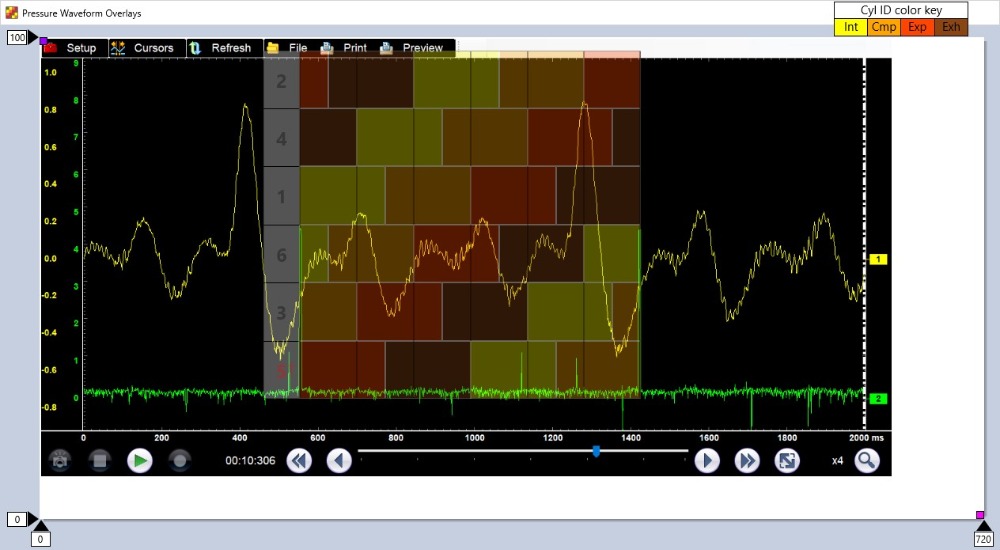

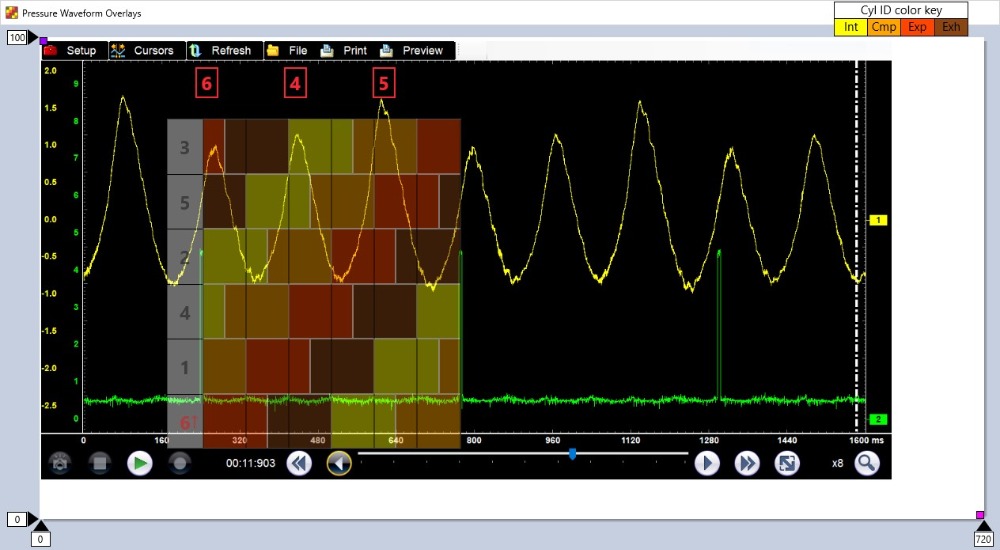

Free to download, and produces some very nice overlays. It also incorporates most of the functions I used Paint for when editing captures. B) Some examples:





Give it a try!
Attachments:
The following user(s) said Thank You: Noah
