Hantek 1008c measuring question.
5 years 5 months ago #24868
by Nqkaf
Hantek 1008c measuring question. was created by Nqkaf
I've connected it to a 9V battery.

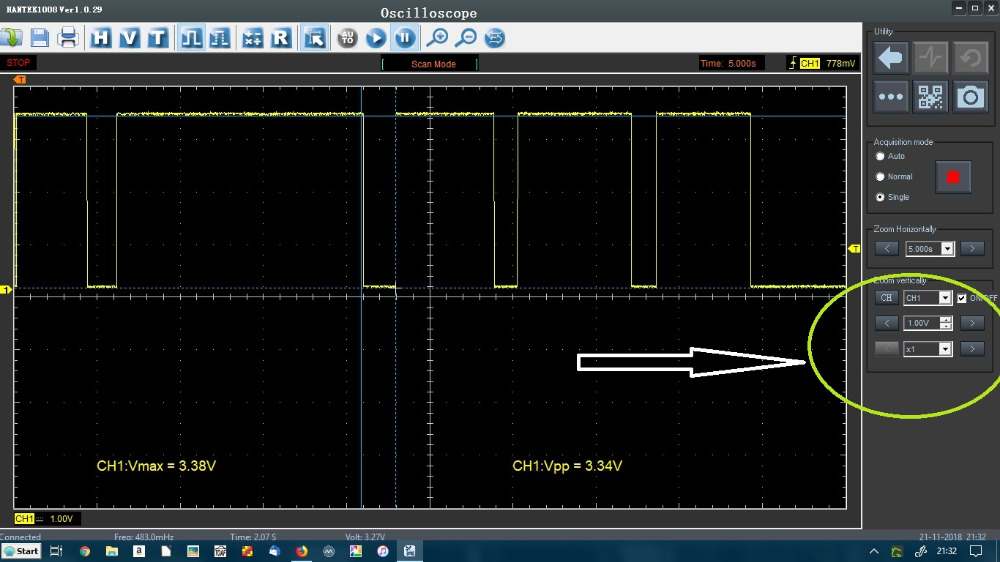

The channel is set to 1V per division.(on picture)
As i know 1 square is 1 division.

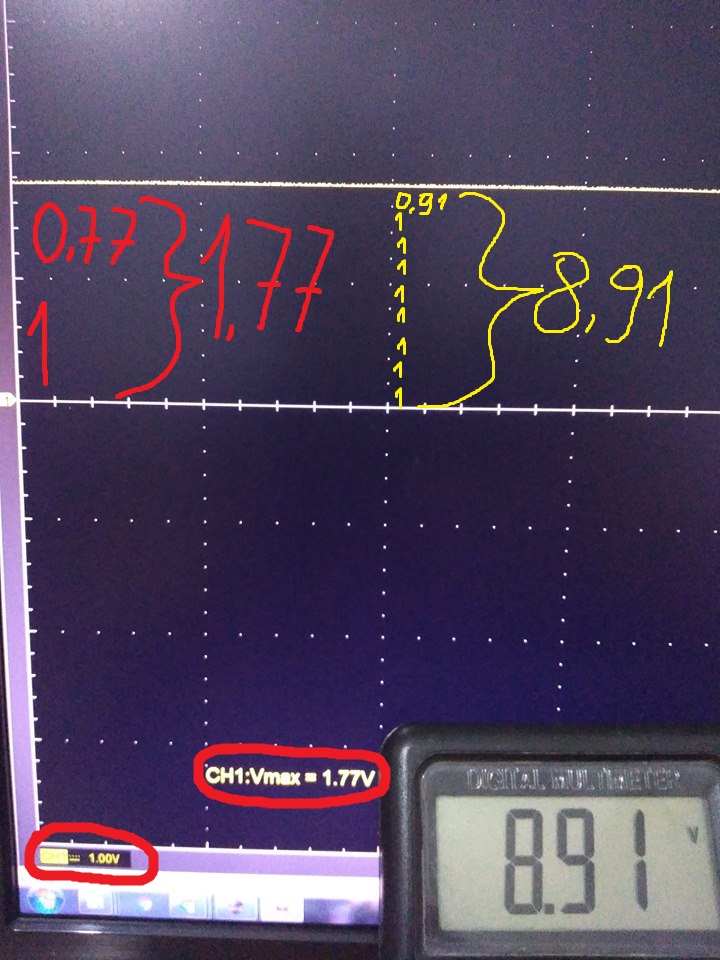

But it measures 1V per dot.
And since it is set to 1V per division the scope tells me its 1.77V.
Am i doing something wrong?
The channel is set to 1V per division.(on picture)
As i know 1 square is 1 division.
But it measures 1V per dot.
And since it is set to 1V per division the scope tells me its 1.77V.
Am i doing something wrong?
Please Log in or Create an account to join the conversation.
- Andy.MacFadyen
- Offline
- Moderator
Less
More
- Posts: 3353
- Thank you received: 1031
5 years 5 months ago - 5 years 5 months ago #24895
by Andy.MacFadyen
" We're trying to plug a hole in the universe, what are you doing ?. "
(Walter Bishop Fringe TV show)
Replied by Andy.MacFadyen on topic Hantek 1008c measuring question.
" We're trying to plug a hole in the universe, what are you doing ?. "
(Walter Bishop Fringe TV show)
Last edit: 5 years 5 months ago by Andy.MacFadyen.
Please Log in or Create an account to join the conversation.
5 years 5 months ago #24914
by Nqkaf
Replied by Nqkaf on topic Hantek 1008c measuring question.
I don't think that you understand the problem.

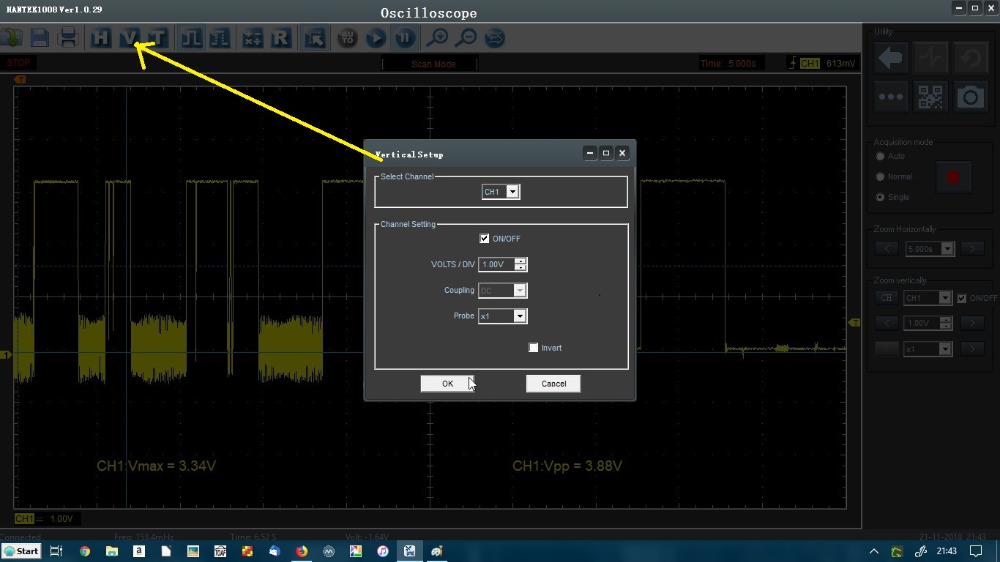

There are many ways to change the volts/div on this software, i know.
It doesn't matter what volts/div i choose it measures it as 1 div is from dot to dot and not from square to square,but the software reads it as square to square and gives wrong measurment (its all shown on the picture).
There are many ways to change the volts/div on this software, i know.
It doesn't matter what volts/div i choose it measures it as 1 div is from dot to dot and not from square to square,but the software reads it as square to square and gives wrong measurment (its all shown on the picture).
Please Log in or Create an account to join the conversation.
- Andy.MacFadyen
- Offline
- Moderator
Less
More
- Posts: 3353
- Thank you received: 1031
5 years 5 months ago - 5 years 5 months ago #24915
by Andy.MacFadyen
" We're trying to plug a hole in the universe, what are you doing ?. "
(Walter Bishop Fringe TV show)
Replied by Andy.MacFadyen on topic Hantek 1008c measuring question.
Are you using an oscilloscope probe rather than a lead with crocodile clips ? If so check the x10 attenuator switch on the probe matches the software setting. If you want to measure a voltage it is best to use a horizontal cursor --- a bit awkward with the Hantek software but they do work and give reasonably accurate readings.
Keep in mind oscilloscope even expensive ones are not precision digital voltmeters , but they
are very very fast voltmeters that draw graphs and are very very good at measuring small intervals of time.
Keep in mind oscilloscope even expensive ones are not precision digital voltmeters , but they
are very very fast voltmeters that draw graphs and are very very good at measuring small intervals of time.
" We're trying to plug a hole in the universe, what are you doing ?. "
(Walter Bishop Fringe TV show)
Last edit: 5 years 5 months ago by Andy.MacFadyen.
Please Log in or Create an account to join the conversation.
5 years 5 months ago #24917
by Nqkaf
Replied by Nqkaf on topic Hantek 1008c measuring question.
I've used scope probe(with 10x on and off) and lead with crocodile clips.
I've tried with 4 different software versions and different drivers for the scope.
The result is the same.
The waveforms are correct but not the measurment(i have to count volts on my own from dot to dot).
I guess its normal for this Hantek...
I've tried with 4 different software versions and different drivers for the scope.
The result is the same.
The waveforms are correct but not the measurment(i have to count volts on my own from dot to dot).
I guess its normal for this Hantek...
Please Log in or Create an account to join the conversation.
- Andy.MacFadyen
- Offline
- Moderator
Less
More
- Posts: 3353
- Thank you received: 1031
5 years 5 months ago #24919
by Andy.MacFadyen
" We're trying to plug a hole in the universe, what are you doing ?. "
(Walter Bishop Fringe TV show)
Replied by Andy.MacFadyen on topic Hantek 1008c measuring question.
I think you will find 99.9% people use the cursor to measure voltage and time on any scope.
" We're trying to plug a hole in the universe, what are you doing ?. "
(Walter Bishop Fringe TV show)
Please Log in or Create an account to join the conversation.
- Desmond6004
- Offline
- Platinum Member
5 years 5 months ago #25008
by Desmond6004
When I use one of the vehicle presets I see a voltage, but on the plain scope setting I can't get voltages or zoom in to the pattern.
Getting involved in discussions because I have a lot to learn still.
Replied by Desmond6004 on topic Hantek 1008c measuring question.
I recently bought the 1008C and installed the software on a windows 10 laptop and am finding it very difficult to see a reading of any sort.Andy.MacFadyen wrote: I think you will find 99.9% people use the cursor to measure voltage and time on any scope.
When I use one of the vehicle presets I see a voltage, but on the plain scope setting I can't get voltages or zoom in to the pattern.
Getting involved in discussions because I have a lot to learn still.
